Yoko CCTV Speed Dome Camera |
 |
|
 |
| |

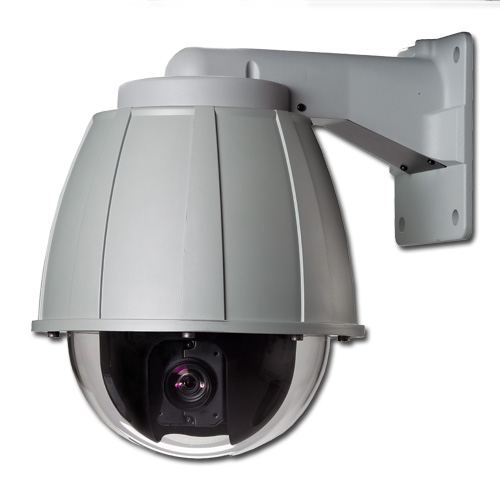

Yoko RYK-2E00A&B PTZ-Pan Tilt Zoom Camera |
|
Specifications |
|
 |
|
 |
|
|
|
|
|
| |
 |
|
| Model Name |
RYK-2E00A&B |
| Image Device |
1/4" Color Sony Super HAD (Hi-Res.) |
| Picture Elements |
NTSC:768x494, PAL:752x582 |
| Resolution |
470 TVL |
| Min. Illumination |
0.7 Lux / F1.6 |
| Electronic Shutter |
NTSC:1/60~1/30,000, PAL:1/50~1/30,000 |
| Lens Furnished |
22x Auto Focus Zoom (3.9~85.8mm / F1.6~3.7) |
| Digital Zoom Ratio |
Basic 16x (Total Zoom Ratio 352x),
2x~16x variable |
| Zoom Speed |
5 sec |
| Focus Mode |
Auto / Manual / Push Auto |
| Iris Control |
Auto / Manual |
| White Balance |
Auto / Hue / Indoor / Outdoor / manual / Push Auto |
| Gain Control |
Auto / Manual |
| Back Light Comp. |
On / Off |
| Pan / Tilt Control Angle |
Pan:360°, Tilt:0°~90° |
| Pan / Tilt Speed Control |
Manual: Pan 1°~150° / sec, Tilt 1°~100° / sec
Auto: Pan 1°~300° / sec, Tilt 1°~200° / sec |
| Preset Point |
128 preset points |
| Sequence |
6 |
| Controller Interface |
RS-485 |
| Compatible Protocol |
YOKO / PELCO D&P / LG |
| On Screen Display |
Set-up menu |
| Auto Turn Around |
Yes |
| Alarm / Relay |
6 / 1 |
| Sync. System |
Internal |
| Video Output |
1 Vp-p / 75 Ohms |
| Power Supply |
DC12V±10% (option: AC24V) |
| Power Consumption |
DC: 2800mA max. / AC: 2400mA max. |
| Operating Temp. |
-10°C ~ 50°C |
|
|
|
|
|
|
| |
|
|
|
| |

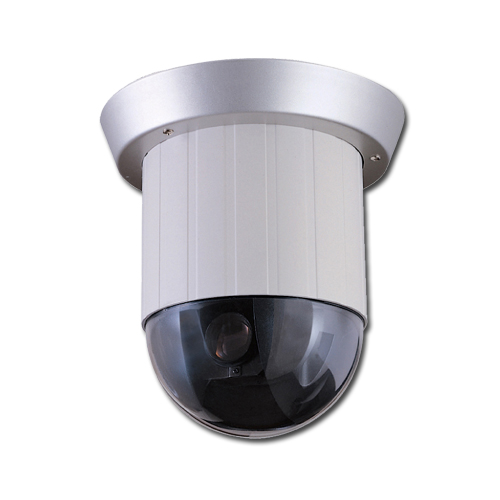

Yoko RYK-2E04 PTZ-Pan Tilt Zoom Camera |
|
Specifications |
|
|
|
|
|
| |
|
|
|
| |
 |
|
| Model Name |
RYK-2E04 |
| Image Device |
1/4" Color Sony EX-View HAD (Hi-Res.) |
| Picture Elements |
NTSC:768x494, PAL:752x582 |
| Resolution |
470 TVL |
| Min. Illumination |
0.01 Lux (Night / BW), 0.5 Lux (Day / Color) / F1.6~3.7 |
| Electronic Shutter |
NTSC:1/60~1/30,000, PAL:1/50~1/30,000 |
| Lens Furnished |
35x (ICR) Auto Focus Zoom (3.6~126mm / F1.6~4.2) |
| Digital Zoom Ratio |
Basic 16x (Total Zoom Ratio 560x),
2x~16x variable |
| Zoom Speed |
8 sec |
| Focus Mode |
Auto / Manual / Push Auto |
| Iris Control |
Auto / Manual |
| White Balance |
Auto / Hue / Indoor / Outdoor / manual / Push Auto |
| Day / Night (ICR) |
AE / Sensor / Day / Night |
| Gain Control |
Auto / Manual |
| Back Light Comp. |
On / Off |
| Pan / Tilt Control Angle |
Pan:360°, Tilt:0°~90° |
| Pan / Tilt Speed Control |
Manual: Pan 1°~150° / sec, Tilt 1°~100° / sec
Auto: Pan 1°~300° / sec, Tilt 1°~200° / sec |
| Preset Point |
128 preset points |
| Sequence |
6 |
| Controller Interface |
RS-485 |
| Compatible Protocol |
YOKO / PELCO D&P / LG |
| On Screen Display |
Set-up menu |
| System Auto Reset |
Yes |
| Alarm / Relay |
6 / 1 |
| Sync. System |
Internal |
| Video Output |
1 Vp-p / 75 Ohms |
| Power Supply |
DC12V±10% |
| Power Consumption |
1083mA max. |
| Operating Temp. |
-10°C ~ 50°C |
|
|
|
|
|
|
| |
|
